LABORATORY DRYING OVEN – TABLE TYPE
TECHNICAL DATA SHEET
| Product Name | Laboratory Drying Oven (Table Type) |

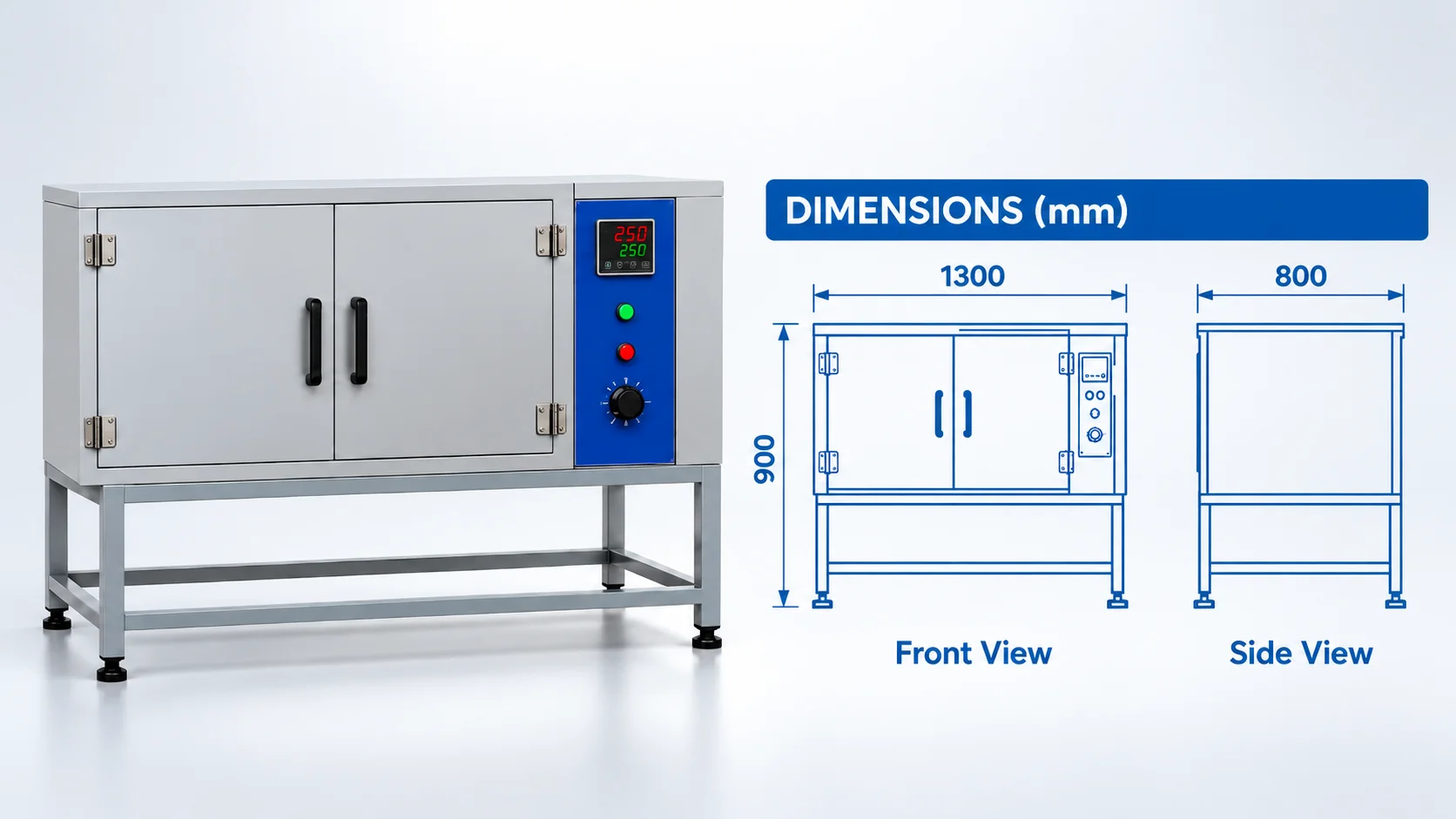

| Dimensions (L × W × H) | 1300 × 800 × 900 mm |
| Internal Chamber Size (Approx.) | 1200 × 700 × 600 mm |
| Material (Body) | Mild Steel (MS) – Double Walled Insulated |
| Trays | 2 Nos. (MS Trays) |
| Temperature Range | Ambient to 250°C |
| Temperature Control | Digital / Thermostat |
| Heater | Electric Heating Element (as per requirement) |
| Insulation | High Density Insulation (mineral wool / glass wool) |
| Power Supply | 220–240 V, 50/60 Hz (as per requirement) |
| Total Power | Typical 2–4 kW (as per design) |
| Finish | Powder Coated Paint (anti-rust) |
| Application | Suitable for civil engineering laboratory use |
KEY FEATURES
- Double-walled insulated body for uniform temperature and energy efficiency
- Digital / thermostat temperature control for accurate and stable heating
- Temperature range ambient to 250°C
- 2 MS trays for sample drying
- Sturdy table type design with MS frame
- Suitable for civil engineering laboratory use

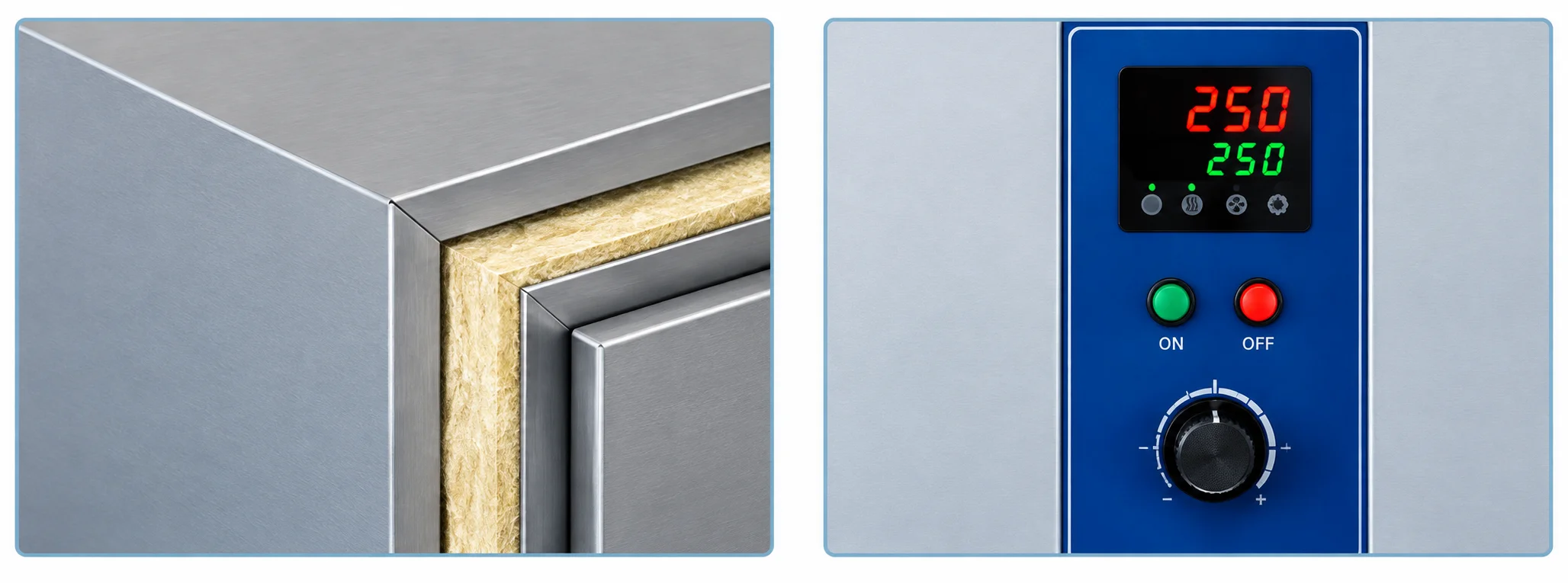

MATERIAL & FINISH
Double Wall Insulated Body
(Mild Steel)
Digital / Thermostat
Temperature Controller
GENERAL INFORMATION
| Parameter | Details |
|---|---|
| Equipment Name | Laboratory Drying Oven – Table Type |
| Overall Dimensions (L × W × H) | 1300 × 800 × 900 mm |
| Construction | Mild Steel (MS), double-walled insulated body |
| Trays | 2 Nos. MS trays |
| Temperature Range | Ambient to 250°C |
| Temperature Control | Digital / Thermostat |
| Application | Civil engineering laboratory use |
EQUIPMENT DESCRIPTION
The Laboratory Drying Oven is a table-type electrically heated oven designed for drying and heating applications in civil engineering laboratories. It is fabricated with a Mild Steel (MS) double-walled insulated body and supplied with two MS trays. Temperature is adjustable from ambient to 250°C through digital / thermostat temperature control.
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Product Name | Laboratory Drying Oven – Table Type |
| Dimensions (L × W × H) | 1300 × 800 × 900 mm |
| Body Material | Mild Steel (MS) |
| Body Construction | Double-walled insulated |
| Trays | 2 Nos. MS trays |
| Temperature Range | Ambient to 250°C |
| Temperature Control | Digital / Thermostat |
| Heating System | Electric heating elements |
| Insulation | High-density thermal insulation |
| Finish | Powder-coated / anti-rust paint |
| Application | Civil engineering laboratory use |
KEY FEATURES
- Double-walled Mild Steel body with thermal insulation.
- Temperature range from ambient to 250°C.
- Digital / thermostat temperature control.
- Supplied with 2 Nos. MS trays.
- Table-type design suitable for laboratory installation.
- Suitable for civil engineering laboratory drying and heating applications.
MATERIAL & FINISH
- Outer and inner body: Mild Steel (MS).
- Construction: Double-walled with thermal insulation between walls.
- Trays: Mild Steel, 2 Nos.
- External finish: Powder-coated / anti-rust paint.
SUITABLE FOR
Civil Engineering Laboratories | Material Testing Laboratories | Research & Educational Institutions | Construction Material Testing | Quality Control Facilities
SAFETY & MAINTENANCE
- Operate within the specified temperature range.
- Allow the chamber and trays to cool before cleaning or handling.
- Inspect electrical connections, heating elements and temperature controller periodically.
- Keep the surrounding area clear during operation.
WARRANTY
Warranty Period: 12 Months (1 Year), subject to agreed commercial terms and conditions.
