SLUMP CONE BASE PLATE (900 × 900 mm)
KEY FEATURES
- High strength and durability
- Accurate central hole for standard slump cone
- Two handles for easy lifting and positioning
- Stable and level base for precise testing
- Corrosion-resistant finish for long service life
- Suitable for laboratory and site use
TECHNICAL DATA SHEET
| Product Name | Slump Cone Base Plate |
| Dimensions (L × W) | 900 mm × 900 mm |
| Thickness | 10 mm (approx.) |
| Central Hole Diameter | Ø 100 mm (for slump cone) |
| Material | Mild Steel (MS) |
| Construction | Rolled / Cut and Welded |
| Finish | Powder Coated / Anti-rust Paint |
| Handles | 2 Nos. (for easy handling) |
| Weight (approx.) | 20 – 25 kg (approx.) |
MATERIAL & FINISH
GENERAL INFORMATION
| Parameter | Details |
|---|---|
| Equipment Name | Slump Cone Base Plate |
| Overall Dimensions | 900 × 900 mm |
| Application | Base plate for concrete slump cone testing |
| Material | Mild Steel (MS) |
| Plate Thickness | 10 mm (approx.) |
| Central Opening | Ø 100 mm |
| Handles | 2 Nos. welded handles |
EQUIPMENT DESCRIPTION

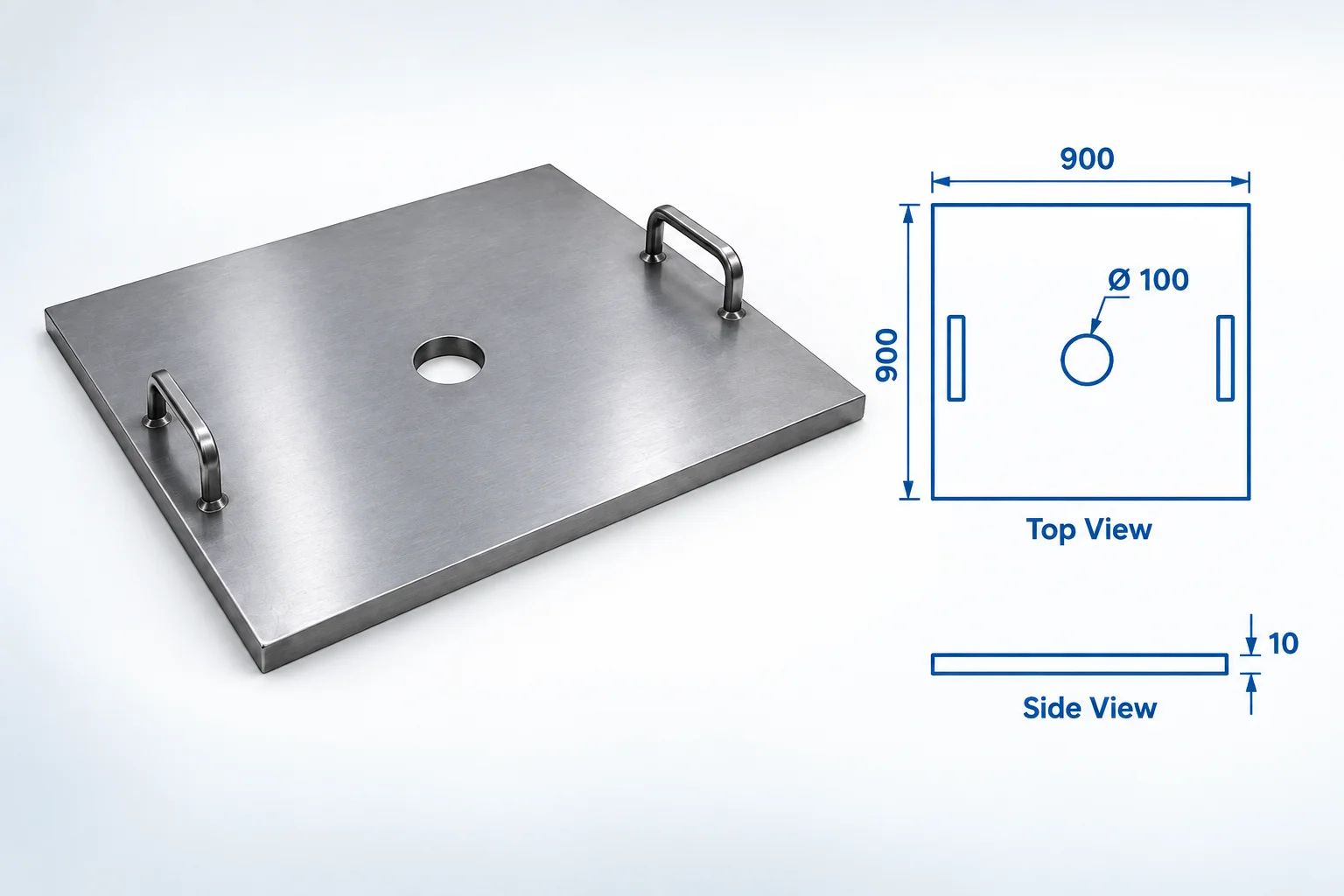

The Slump Cone Base Plate is a fabricated steel platform designed to provide a firm and level surface for concrete slump testing. The 900 × 900 mm plate provides adequate working area around the slump cone, with a central opening and two welded handles for positioning and handling.
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Product Name | Slump Cone Base Plate |
| Dimensions (L × W) | 900 × 900 mm |
| Thickness | 10 mm (approx.) |
| Central Hole Diameter | Ø 100 mm (for slump cone) |
| Material | Mild Steel (MS) |
| Construction | Rolled / Cut and Welded |
| Finish | Powder Coated / Anti-rust Paint |
| Handles | 2 Nos. (for easy handling) |
| Approx. Weight | 20–25 kg (approx.) |
KEY FEATURES
- High strength and durability.
- Accurate central hole for standard slump cone positioning.
- Two handles for easy lifting and positioning.
- Stable and level base for precise testing.
- Protective finish for improved corrosion resistance.
- Suitable for laboratory and site use.

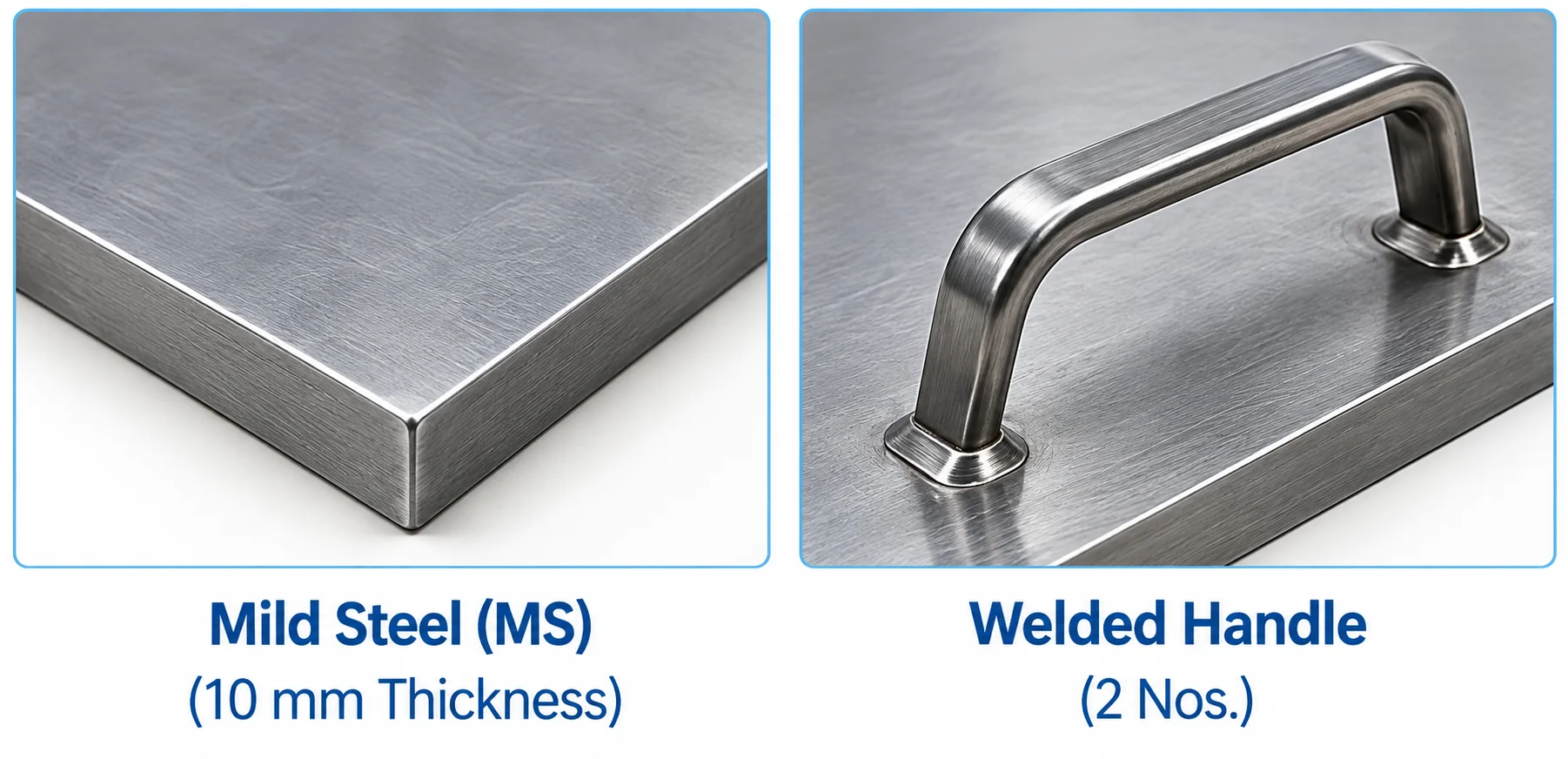

MATERIAL & FINISH
- Plate: Mild Steel (MS), approximately 10 mm thickness.
- Handles: Welded steel handles, 2 Nos.
- Finish: Powder coating / anti-rust paint.
SUITABLE FOR
Concrete Testing Laboratories | Construction Sites | Ready-Mix Concrete Plants | Research & Educational Institutions | Quality Control Facilities
MAINTENANCE
- Clean concrete residue from the plate after each test.
- Inspect handles and welded joints periodically.
- Repair damaged coating to prevent corrosion.
- Store in a dry location when not in use.
WARRANTY
Warranty Period: 12 Months (1 Year), subject to agreed commercial terms and conditions.
