Concrete Cube Mould Holder
Heavy-Duty Steel with Extended Long Handle Safe Lifting, Carrying and Handling Tool for Concrete Cube Moulds
GENERAL INFORMATION
| Parameter | Details |
|---|---|
| Equipment Name | Concrete Cube Mould Holder (Small) – Extended Long Handle |
| Full Form | Heavy-Duty Steel Cube Mould Lifting & Handling Holder |
| Application | Safe lifting, carrying and handling of concrete cube moulds during casting, transportation and testing |
| Suitable For | Small-size concrete cube moulds (100 mm cube type) |
| Construction | Heavy-duty welded steel with corrosion-resistant finish |
| Handle Type | Extended long handle for safe, convenient operation |
| Standards Compliance | Suitable for use with ISO and international concrete testing standards |
EQUIPMENT DESCRIPTION
The Concrete Cube Mould Holder (Small) is a heavy-duty handling tool designed for the safe lifting, carrying and positioning of filled and empty concrete cube moulds in the laboratory and on site. The extended long handle keeps the operator's hands clear of the mould, reduces bending and strain, and allows moulds to be moved conveniently during casting, transportation and testing operations. Its welded steel construction and corrosion-resistant finish ensure long service life under demanding, wet and abrasive concrete-laboratory conditions.
MAIN COMPONENTS

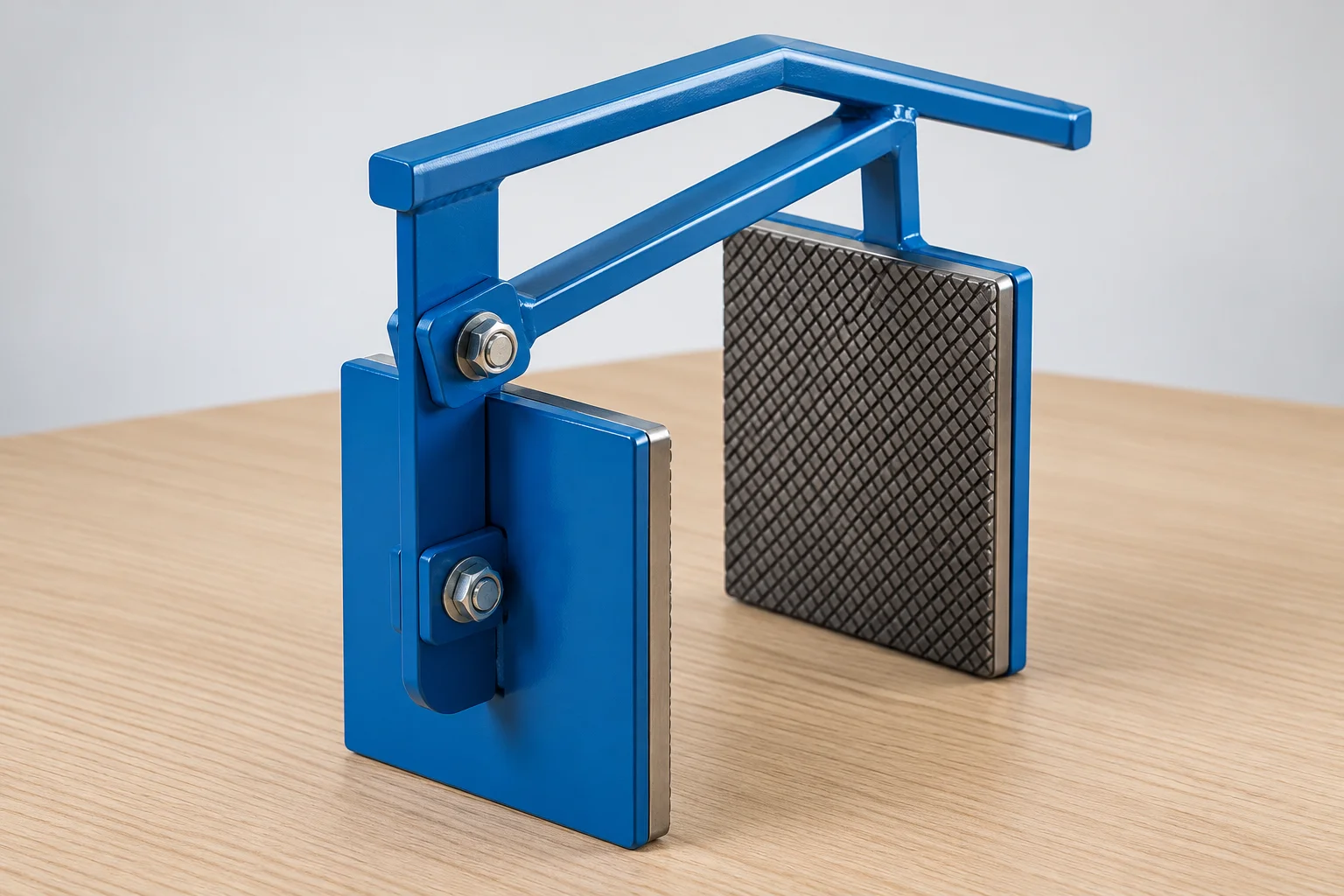

1. Holder Frame / Cradle:
- Heavy-duty steel cradle shaped to grip the cube mould securely
- Rigid welded joints for load stability
- Smooth edges to avoid damage to mould surfaces
2. Extended Long Handle:
- Long steel handle for safe reach and reduced operator strain
- Firmly welded to the holder frame
- Comfortable grip section for confident handling
3. Finish & Protective Coating:
- Corrosion-resistant finish for wet laboratory and site use
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Holder Size | Small – for 100 mm cube moulds |
| Moulds per Lift | 1 Mould |
| Handle Length | Extended long handle (approx. 500 mm) |
| Material | Heavy-duty mild steel |
| Plate / Section Thickness | 3–5 mm (approx.) |
| Joining Method | Welded construction |
| Finish | Corrosion-resistant coating |
| Approximate Weight | 1.5 – 2.5 kg |
| Safe Working Load | Suitable for filled 100 mm cube mould (approx. 5–6 kg) |
CONSTRUCTION DETAILS
| Component | Material |
|---|---|
| Holder Frame | Heavy-duty mild steel, welded for strength and durability |
| Handle | Mild steel long handle with welded connection to frame |
| Welds | Continuous, cleaned and ground welds for structural integrity |
| Surface Finish | Corrosion-resistant finish for long service life |
SAFETY FEATURES
- Extended long handle keeps hands away from the mould and reduces strain
- Secure cradle design to hold the mould firmly during lifting
- Heavy-duty welded joints to prevent failure under load
- Smooth, deburred edges to protect the operator and moulds
- Corrosion-resistant finish to maintain strength over time
- Stable, balanced design for controlled handling
OPERATING FEATURES
- Simple, tool-free operation – no moving parts or adjustments
- Suitable for handling moulds during casting, transport and testing
- Convenient carrying and positioning of moulds on tables, vibrators and curing tanks
- Easy to clean and low maintenance
ENVIRONMENTAL SPECIFICATIONS
| Parameter | Range |
|---|---|
| Operating Temperature | 5°C – 50°C |
| Relative Humidity | Suitable for wet and humid laboratory conditions |
| Installation / Use Location | Laboratory, casting yard and site testing areas |
APPLICATION AREAS
- Concrete testing and quality control laboratories
- Construction material research facilities
- Highway and bridge project sites
- Precast and ready-mix concrete plants
- University and research institutions
- Site laboratories for cube casting and curing
MAINTENANCE SCHEDULE
Daily Maintenance:
Clean the holder after use. Remove concrete and cement residue. Check for damage or bending.
Monthly Maintenance:
Inspect welds and handle for cracks. Check finish for wear or rust. Touch up coating if required.
Yearly Maintenance:
Complete structural inspection. Re-coat or refurbish finish if required. Replace if bent or damaged.
WARRANTY
Warranty Period: 12 Months (1 Year) from date of installation or invoice.
