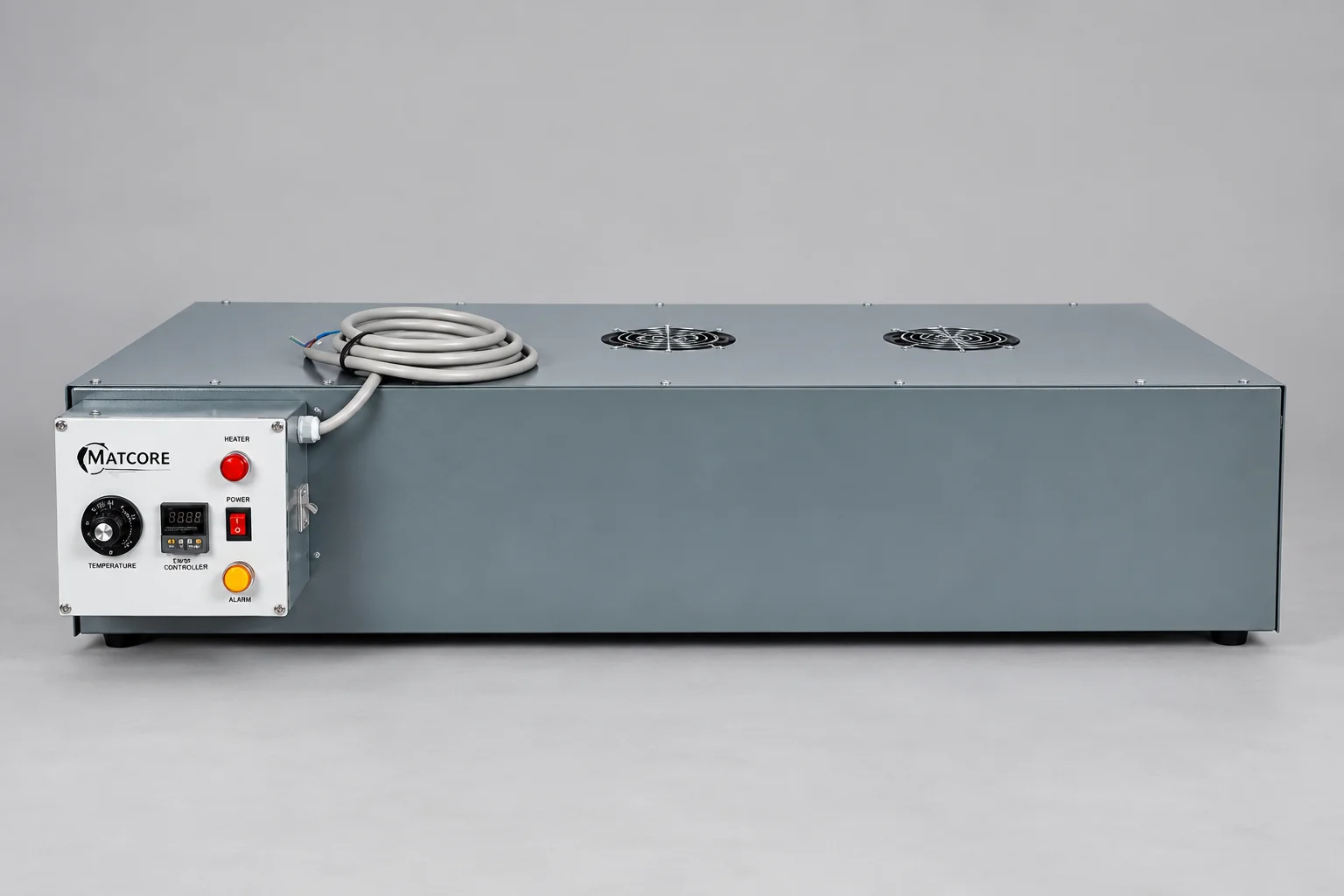

Chamber Hot Air Oven – FC-V154-80 (Force Ventilated)
Heavy-Duty Force Ventilated Chamber Oven for Industrial & Laboratory Applications
GENERAL INFORMATION
| Equipment Name | Chamber Hot Air Oven – FC-V154-80 |
| Full Form | Force Ventilated Chamber Hot Air Oven |
| Application | Uniform drying and heating of materials with precise temperature control |
| Test Method | Force Ventilated Heating with Microprocessor Control |
| Brand & Model | MATCOR | FC-V154-80 | Made in UAE |
EQUIPMENT DESCRIPTION
The Chamber Hot Air Oven – FC-V154-80 is a heavy-duty, force ventilated oven designed for uniform drying and heating of materials in industrial and laboratory environments. Featuring microprocessor-based temperature control with a maximum temperature of 80°C, the oven provides precise, stable heating with exceptional temperature uniformity throughout the chamber. The integrated force ventilation system ensures consistent air circulation, making it ideal for critical drying applications, material conditioning, low-temperature curing processes, and electronics drying.
CAPACITY & DIMENSIONS
| Description | Specification |
|---|---|
| Internal Volume | 154 Liters |
| Internal Dimensions | 1500 mm (L) × 540 mm (W) × 190 mm (H) |
| External Dimensions | 1600 mm (L) × 640 mm (W) × 290 mm (H) |
CONSTRUCTION DETAILS
| Item | Specification |
|---|---|
| Internal Material | Stainless Steel (SS 304) |
| External Body | GI Sheet / Powder Coated |
| Insulation | High-Density Mineral Wool |
| Door Sealing | High Temperature Insulation Curtain |
| Gasket Material | High Temperature Silicone Seal |
| Chamber Support | Reinforced Structure |
TEMPERATURE PERFORMANCE
| Parameter | Specification |
|---|---|
| Temperature Range | Ambient +10°C to 80°C |
| Temperature Control | Microprocessor Based PID Controller |
| Display | Large LED / Digital Display |
| Temperature Sensor | PT100 RTD |
| Temperature Stability | ±1°C |
| Temperature Uniformity | ±3°C |
| Heating Method | Electric Tubular Heater |
AIR CIRCULATION SYSTEM
| Item | Specification |
|---|---|
| Airflow Type | Force Ventilated |
| Air Distribution | Uniform Forced Convection |
| Fan Type | Axial Cooling Fans |
| Fan Quantity | 3 Nos (Top Mounted) |
ELECTRICAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Supply Voltage | 230 V AC, Single Phase |
| Frequency | 50 Hz |
| Heating Element | Electric Tubular Heaters |
| Total Power Consumption | Approx. 1.5 – 2.0 kW |
| Control Panel | Side Mounted |
SAFETY FEATURES
Four-Tier Protection System:
- PID Temperature Controller – Primary Control
- Independent Over-Temperature Thermostat
- Thermal Fuse Protection
- Fan Overload Protection
APPLICATION AREAS
- Laboratory drying applications
- Industrial component heating
- Material conditioning and preparation
- Electronics drying and assembly
- Low-temperature curing processes
- Concrete and material testing laboratories
- Research and quality control applications
