General Information
| Parameter | Details |
|---|---|

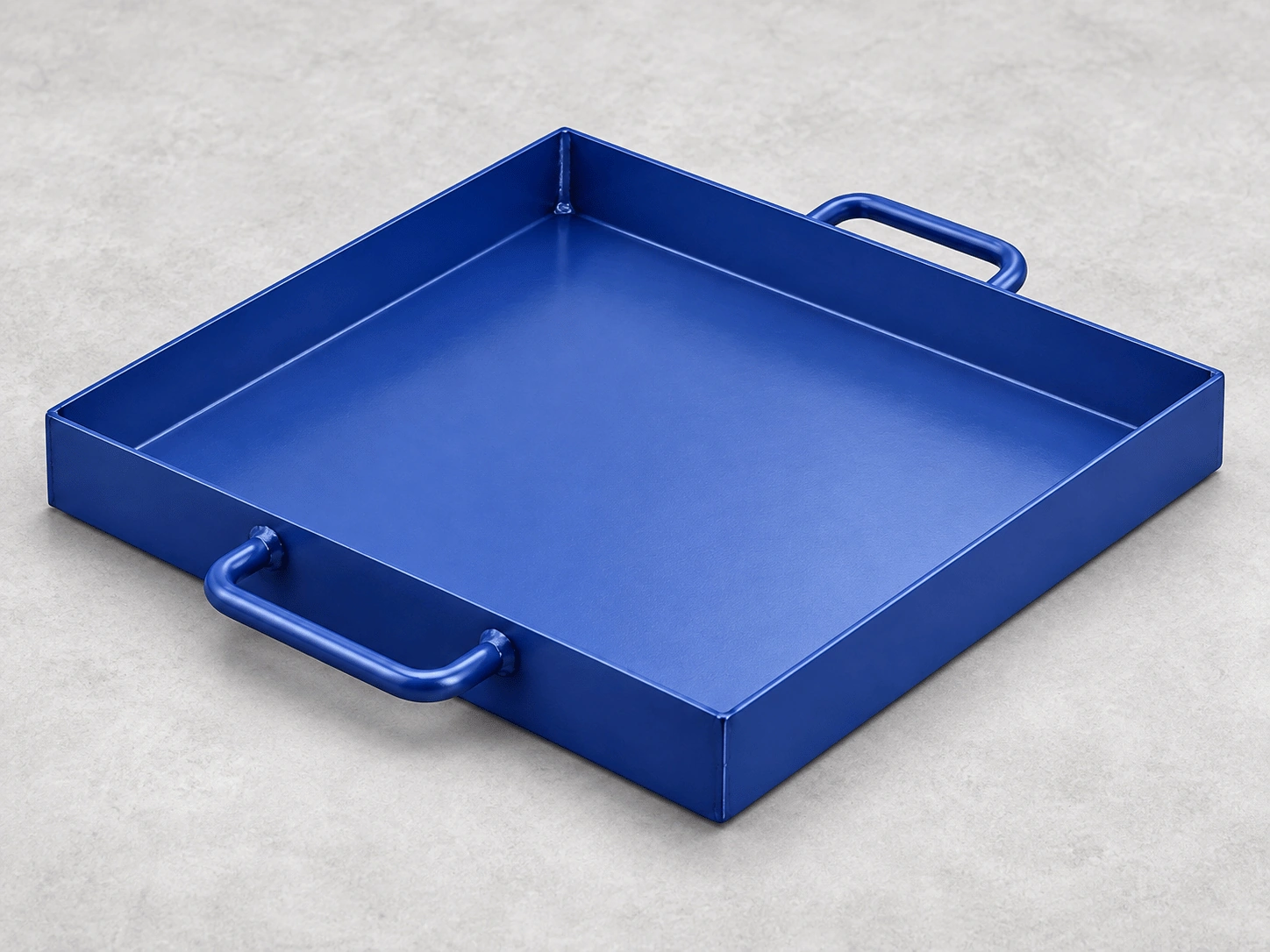

| Equipment Name | Sandling Tray with Handle |
| Product Code | FC-S16-40 |
| Application | Handling, containing and transporting sand and other granular materials |
| Tray Type | Fabricated Metal Tray |
| Material | Mild Steel (MS) Sheet / GI Sheet |
| Construction | Welded fabricated construction |
| Finish | Plain / Painted / Powder Coated |
Tray Specifications
| Parameter | Details |
|---|---|
| Overall Dimensions (L × W × H) | 400 × 400 × 50 mm |
| Sheet Thickness | 3 mm |
| Tray Material | Mild Steel (MS) / GI Sheet |
| Side Wall Height | 50 mm |
| Handle | 2 Nos. - Optional |
| Approx. Weight | To be determined based on material and final fabrication |
| Surface Finish | Plain / Painted / Powder Coated |
Main Components
| Component | Qty. | Dimensions (L × W × T) | Material | Remarks |
|---|---|---|---|---|
| Base Plate | 1 | 400 × 400 × 5 mm | MS | Welded to side walls |
| Long Side Wall | 2 | 400 × 40 × 5 mm | MS | Welded to base, opposite sides |
| Short Side Wall | 2 | 400 × 40 × 5 mm | MS | Welded between long side walls |
| Handle | 2 | Approx. 80 × 20 × 3 mm | MS | Optional; welded to opposite sides |
Construction Details
- Fabricated from 3 mm thick mild-steel sheet or GI sheet.
- Base plate and side walls are accurately cut to the specified dimensions.
- Side walls are securely welded to the base plate.
- Corners are maintained square during fabrication.
- Optional handles are welded on two opposite sides for convenient handling.
- All exposed edges are suitably ground and finished to remove sharp edges and burrs.
Fabrication Process
- Cutting: Base plate and side-wall sections are cut according to the specified dimensions.
- Edge Preparation: All cut edges are cleaned and ground to remove burrs and sharp projections.
- Assembly: Side walls are positioned accurately on the base plate, ensuring proper alignment and square corners.
- Welding: Fillet welds are applied along the required joints between the base and side walls. Additional corner reinforcement may be provided where required.
- Finishing: Welded areas are cleaned and ground smooth. The finished tray may be supplied in plain, painted, or powder-coated condition.
Optional Features
- Two welded carrying handles
- Drain holes for liquid drainage
- Powder-coated protective finish
- Customized dimensions
- Customized material and thickness
- Reinforcement ribs for heavy-duty applications
Surface Finish & Durability
- Smooth and burr-free exposed edges
- Welded joints suitable for normal handling applications
- Corrosion protection available through painting or powder coating
- GI sheet construction available for improved corrosion resistance
Application Areas
The Sandling Tray can be used for:
- Sand and aggregate handling
- Construction material handling
- Concrete and material testing laboratories
- Precast concrete plants
- Civil engineering laboratories
- General industrial material handling
Quality & Fabrication Notes
- Dimensions are nominal and subject to final fabrication tolerances.
- Final dimensions shall be verified after fabrication.
- Weld quality shall be inspected to ensure secure attachment of the side walls and handles.
- All sharp edges shall be removed before delivery.
- Protective coating is recommended for MS construction to minimize corrosion.
- Specifications are subject to change based on customer requirements.
