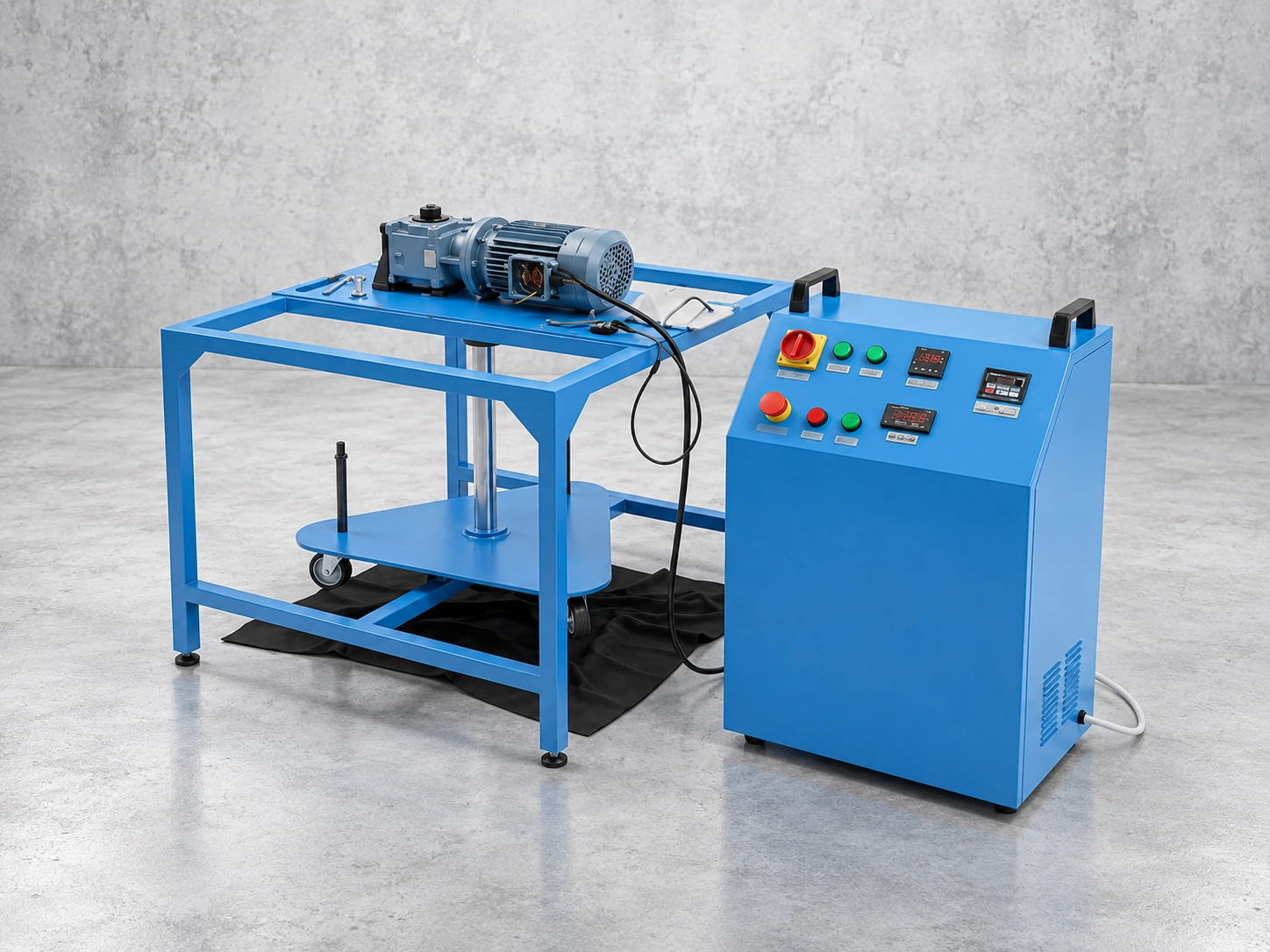

Robinson Floor Tester
Floor Covering Testing Machine — Model FC-RFT-1300 — ASTM C627
A mechanical floor-covering testing machine for controlled, repeated loading and rotating test operation, built to the ASTM C627 Robinson-type floor test method. Geared motor with VFD speed control (5–25 RPM), proximity-sensor pulse feedback, digital RPM display and digital preset counter — on a simple, serviceable relaybased control philosophy without a PLC.
Technical Specifications
| Machine | Robinson Floor Tester | Model | FC-RFT-1300 |
| Serial No. | FCI-S26-027 | Reference Standard | ASTM C627 |
| Overall Size (approx.) | 1500 × 1500 × 800 mm | Test Platform | Approx. 1300 × 1300 mm |
| Main Drive Motor | 2 HP / 1.5 kW, 415 VAC, 3-ph | Drive | Geared motor, helical gearbox |
| Speed Control | VFD controlled | Operating Speed | 5–25 RPM |
| Rotation Feedback | Proximity sensor / pulse input | RPM Display | Digital pulse-type RPM meter |
| Cycle / Count Control | Digital preset counter | Control Voltage | 24 VDC control circuit |
| Main Supply | 415 VAC, 3-ph + neutral + earth | Main Protection | Main isolator / MCB as fitted |
| Emergency Stop | Red mushroom E-Stop, NC contacts | Control Philosophy | Relay + VFD + counter; no PLC |
| Manufacturer | FALCON CORE INDUSTRIES L.L.C. | ||
Main Components
| Main Isolator | 4-pole, 32 A, 450 VAC class* | MCB / Protection | 3-pole, rated for installed system |
| SMPS | 24 VDC control power supply | Motor | 2 HP / 1.5 kW, 415 VAC, 3-ph |
| VFD | 415 VAC 3-ph input, motor-rated | Gearbox | Helical, matched to motor/torque |
| Counter | Digital preset, 24 VDC, pulse input | RPM Meter | Digital pulse type, 24 VDC |
| Proximity Sensor | PNP type, 24 VDC, pulse output | Relay | 24 VDC control relay |
| START Pushbutton | Momentary NO | STOP Pushbutton | Momentary NC |
| Emergency Stop | Red mushroom, NC safety contacts |
