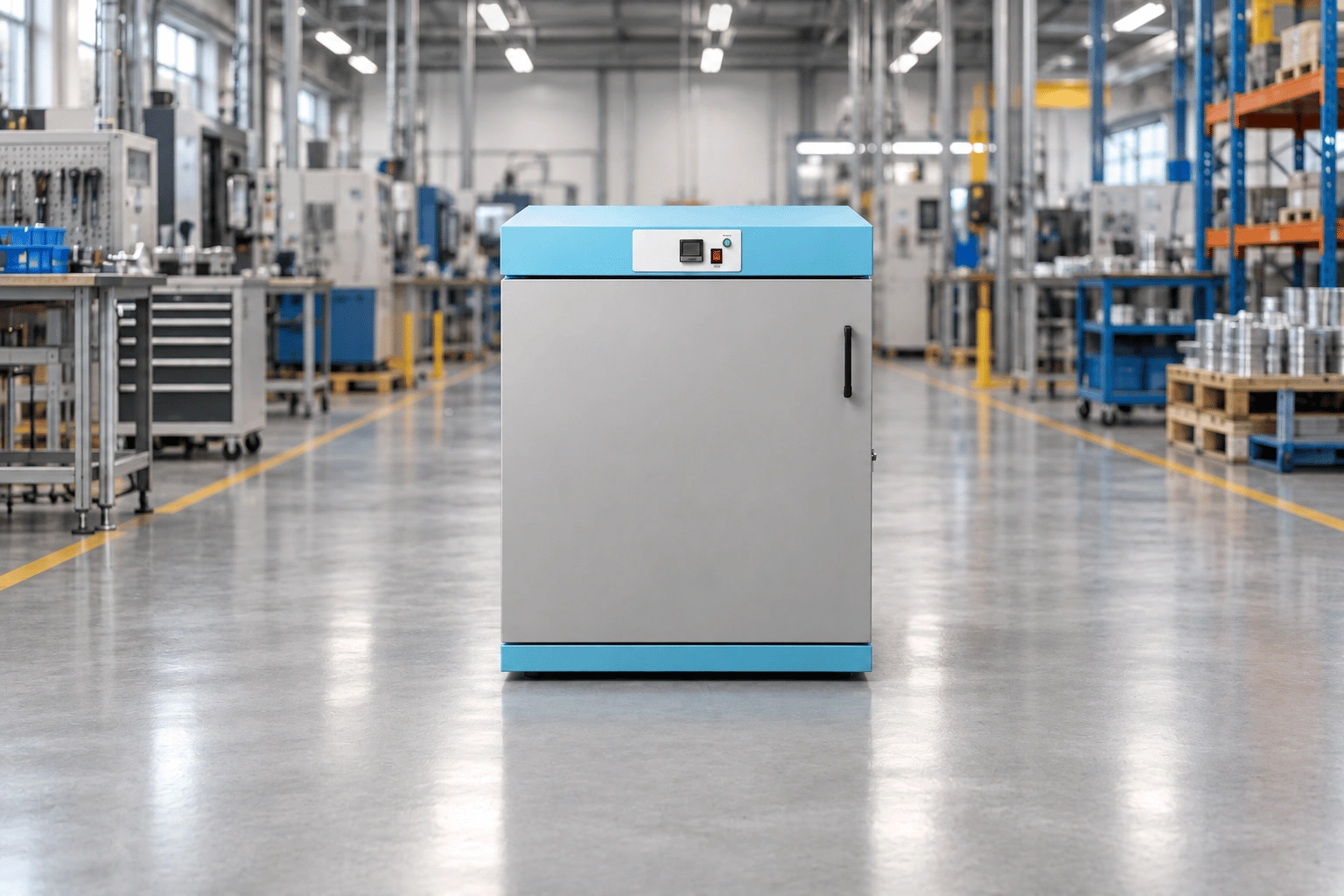

.webp "Laboratory Drying Air Oven one door manufacturer")
| MODEL | MAX. TEMPERATURE | APPLICATION |
|---|---|---|
| FC-V250-250 | 250°C | Drying / Heating / Curing |
General Specification
| Parameter | Specification |
|---|---|
| Product Name | Laboratory / Industrial Drying Air Oven |
| Type | Forced Air Circulation Oven |
| Model | FC-V250-250 |
| Maximum Temperature | 250°C |
| Operating Temperature Range | Ambient +20°C to 250°C |
| Internal Chamber Size | 600 W × 650 D × 700 H mm |
| External Dimensions | 790 W × 800 D × 970 H mm |
| Internal Volume | Approx. 250 Litres |
| Door Type | Single Insulated Door |
| Loading Type | Front Loading |
| Power Supply | 230 VAC, Single Phase, 50 Hz |
Mechanical Construction
| Parameter | Specification |
|---|---|
| Outer Body Material | Painted GI Sheet |
| Inner Chamber Material | SS304 Stainless Steel |
| Insulation Material | High-Density Mineral Wool |
Heating System
| Parameter | Specification |
|---|---|
| Heater Type | Stainless Steel Round Coil Heater |
| Number of Heaters | 1 Nos |
| Total Heater Load | 2500 W (2.5 kW) |
| Heater Control | SSR Controlled |
| Heater Location | Air Circulation Path |
Air Circulation System
| Parameter | Specification |
|---|---|
| Fan Type | Drying Air Circulation Fan |
| Quantity | 1 No. |
| Motor Rating | 30 W |
| Motor Supply | 230 VAC, Single Phase |
| Connection | Direct |
| Operation | Continuous |
| Air Flow Method | Forced Recirculation |
Temperature Control System
| Parameter | Specification |
|---|---|
| Temperature Controller | Digital PID Controller |
| Temperature Sensor | K-Type Thermocouple |
| Control Method | PID + SSR Control |
| Auto-Tuning | Supported (AT Function) |
Electrical Control Panel
| Component | Specification |
|---|---|
| Main Power Switch | Provided |
| MCB | 20 A, Single Pole |
| SSR | 40 A, 1 No. |
| Power Indicator | Provided |
| Heating Indicator | Provided |
Power Requirement
| Parameter | Specification |
|---|---|
| Total Connected Load | Approx. 3 kW |
| Heater Load | 2500 W |
| Fan Motor | 30 W |
| Supply | 230 VAC, Single Phase |
| Frequency | 50 Hz |
Door Specification
| Parameter | Specification |
|---|---|
| Door Type | Single Hinged Insulated Door |
| Door Insulation | High-Density Mineral Wool |
| Inner Skin | SS304 Stainless Steel |
| Outer Skin | Powder-Coated GI Sheet |
| Locking | Handle Latch |
Safety Features
- 20 A Single Pole MCB
- Digital PID Temperature Control
- K-Type Thermocouple Feedback
- SSR Heater Switching
- Mandatory Earthing
- Mineral Wool Insulation
- Forced Air Circulation
Performance
| Parameter | Specification |
|---|---|
| Maximum Temperature | 250°C |
| Air Circulation | Continuous Recirculation |
| Heating Method | Electrical Heating (SS Coil Heaters) |
| Cooling | Natural Cooling |
