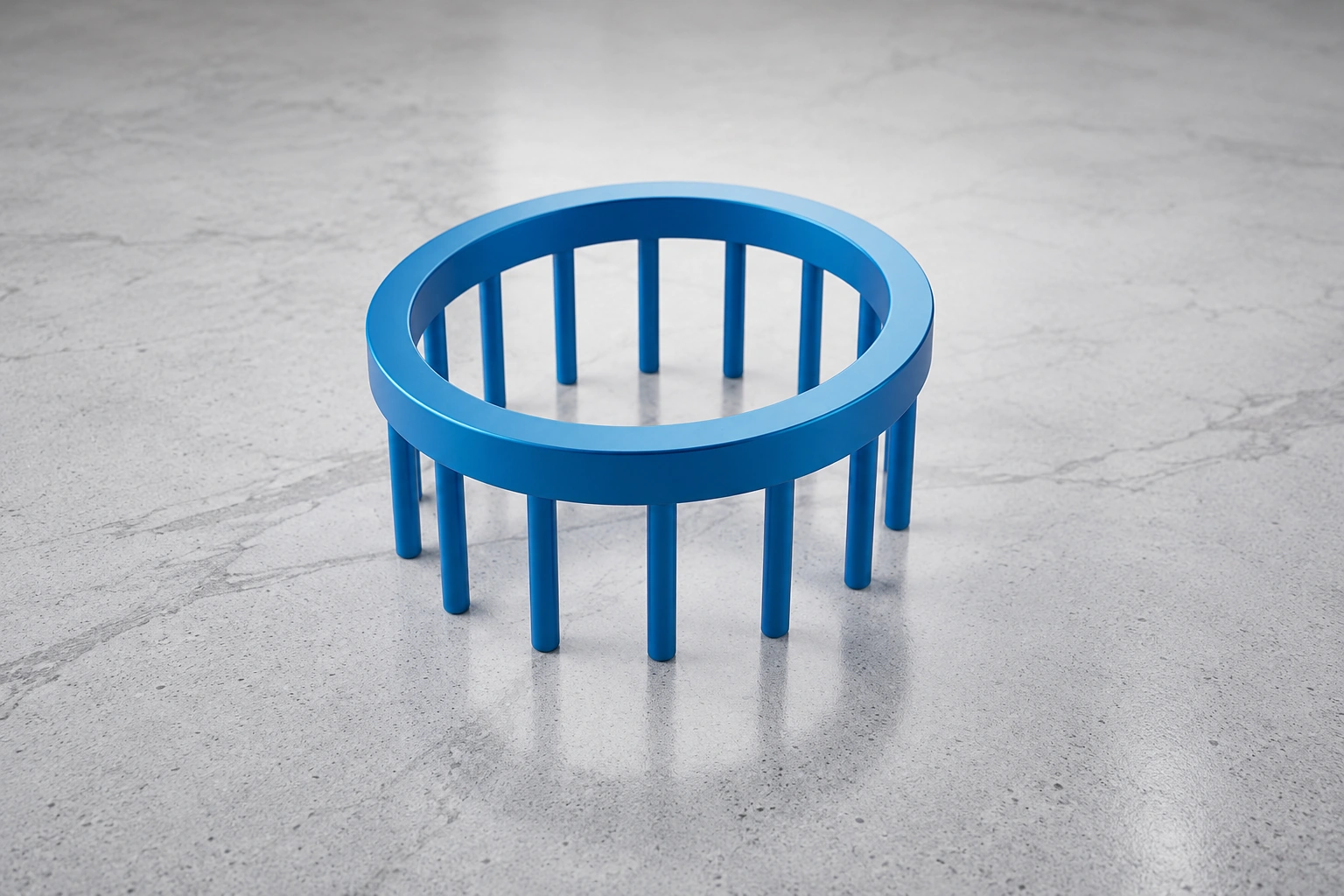

J-RING APPARATUS FOR SELF-COMPACTING CONCRETE
Passing Ability / Flow Test — 300 mm Ring, 16 × 16 mm Bars
A laboratory testing accessory used to evaluate the passing ability and flow characteristics of fresh self-compacting concrete (SCC) under simulated reinforcement obstruction. The apparatus consists of a rigid circular steel ring fitted with 16 evenly spaced vertical steel bars representing reinforcement obstacles. Used together with a standard slump cone, it allows the operator to compare SCC flow under unrestricted and obstructed conditions and assess potential blocking during flow. Suitable for laboratory testing, mix development, research and quality-control applications.
Technical Specifications
| Product Name | J-Ring Apparatus for SCC Test | Application | Passing Ability / Flow Test of SCC |
| Test Type | J-Ring / Slump-Flow Test | Material | Mild Steel (MS) |
| Optional Material | Stainless Steel (SS) | Ring Type | Circular Rigid Ring |
| Ring Internal Diameter | 300 mm | Ring Height (Approx.) | 100 mm |
| Vertical Bars | Steel | Bar Diameter | 16 mm |
| Number of Bars | 16 Nos. | Bar Arrangement | Evenly Spaced Around Ring |
| Joints | Welded | Surface Finish | Powder Coated / Anti-Rust Painted |
| Base Plate | Optional | Operation | Manual |
| Use | Laboratory / Quality Control | Test Material | Self-Compacting Concrete |
| Compatibility | Suitable for Use with Slump-Flow Test Equipment | ||
Main Components
- Circular J-Ring: 300 mm internal opening, approx. 100 mm high, rigid steel construction; provides structural support for the vertical bars.
- Vertical Reinforcement-Simulation Bars: 16 bars, 16 mm diameter, uniformly distributed around the ring and rigidly welded to it; represent reinforcement obstacles.
- Base Plate (Optional): May be supplied where additional stability is required — helps maintain ring position, reduce movement during testing and improve repeatability.
Test Principle
SCC → Slump Cone → J-Ring → Cone Lifted → Concrete Flows Through Bars → Measure Flow
- The J-ring is placed concentrically around the slump cone. After filling, the cone is lifted vertically without disturbing the ring, and concrete flows radially outward through the spaces between the 16 vertical bars.
- Recorded parameters typically include slump flow, J-ring flow, and the flow difference between unrestricted and obstructed spread — together with visual observation of blocking, uneven spread or segregation.
Material Options
- Mild Steel (MS): Standard — robust, economical, easy to fabricate, good mechanical strength, powder-coating compatible.
- Stainless Steel (SS): Optional — enhanced corrosion resistance and reduced maintenance; grade (e.g. SS 304 / SS 316) to be stated on the purchase specification.
Scope of Supply
- Standard J-Ring: J-ring assembly with 16 × 16 mm vertical bars, powder-coated MS construction.
- Complete J-Ring Testing Set: J-ring assembly, slump cone, base plate and supporting/handling accessories — exact scope to be specified in the purchase order.
