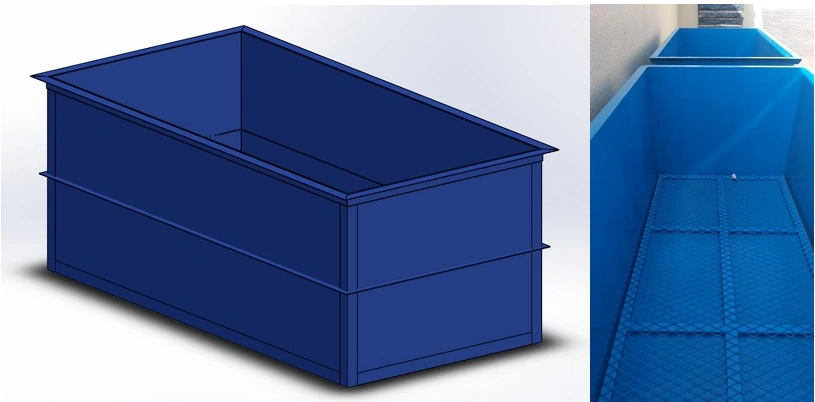

Concrete Curing Tank
Sand Testing Laboratory Tank — Fabricated MS Construction
A fabricated mild steel (MS) rectangular open-top tank, designed for sand washing, soaking and preparation of sand samples in laboratory environments. The tank is robust, leak-proof and suitable for continuous wet and abrasive service conditions.
Technical Specifications
| Tank Type | Fabricated MS Sand Testing Tank | Length | 2000 mm |
| Width | 1000 mm | Height | 620 mm |
| Tank Body (Sides & Bottom) | 3 mm thick MS sheet | Top Edge | Bent / flanged for rigidity |
| L-Angle Support | MS L-Angle 50 × 50 mm | Flat Bar Stiffeners | 50 mm width × 3 mm thickness |
| Bottom Platform | Mesh-type | Drain Outlet | Bottom outlet with valve arrangement |
| Internal Coating | Anti-corrosive blue paint | Manufacturer | FALCON CORE INDUSTRIES L.L.C. |
Construction Details
- Fully welded fabrication ensuring leak-proof construction
- Open-top rectangular design for easy loading and cleaning
- Top edges flanged / bent for added rigidity and safety
- Bottom drain outlet with valve arrangement for controlled discharge of water or slurry
- Mesh-type bottom platform
Application
- Concrete soaking operations
- General material curing purposes
- Handling and temporary storage of sand slurry
- Sand testing laboratories, material testing labs and R&D facilities
Advantages
- Strong and durable MS construction
- Corrosion-resistant internal surface
- Easy cleaning and maintenance
- Efficient drainage system
- Long service life under laboratory conditions
Scope of Supply
- Fabricated MS sand testing tank
- Water circulation pump
- Temperature indicator
- Drain outlet with valve
- Internal protective coating paint
- Ready for laboratory use
